Sailboat

FMA420S

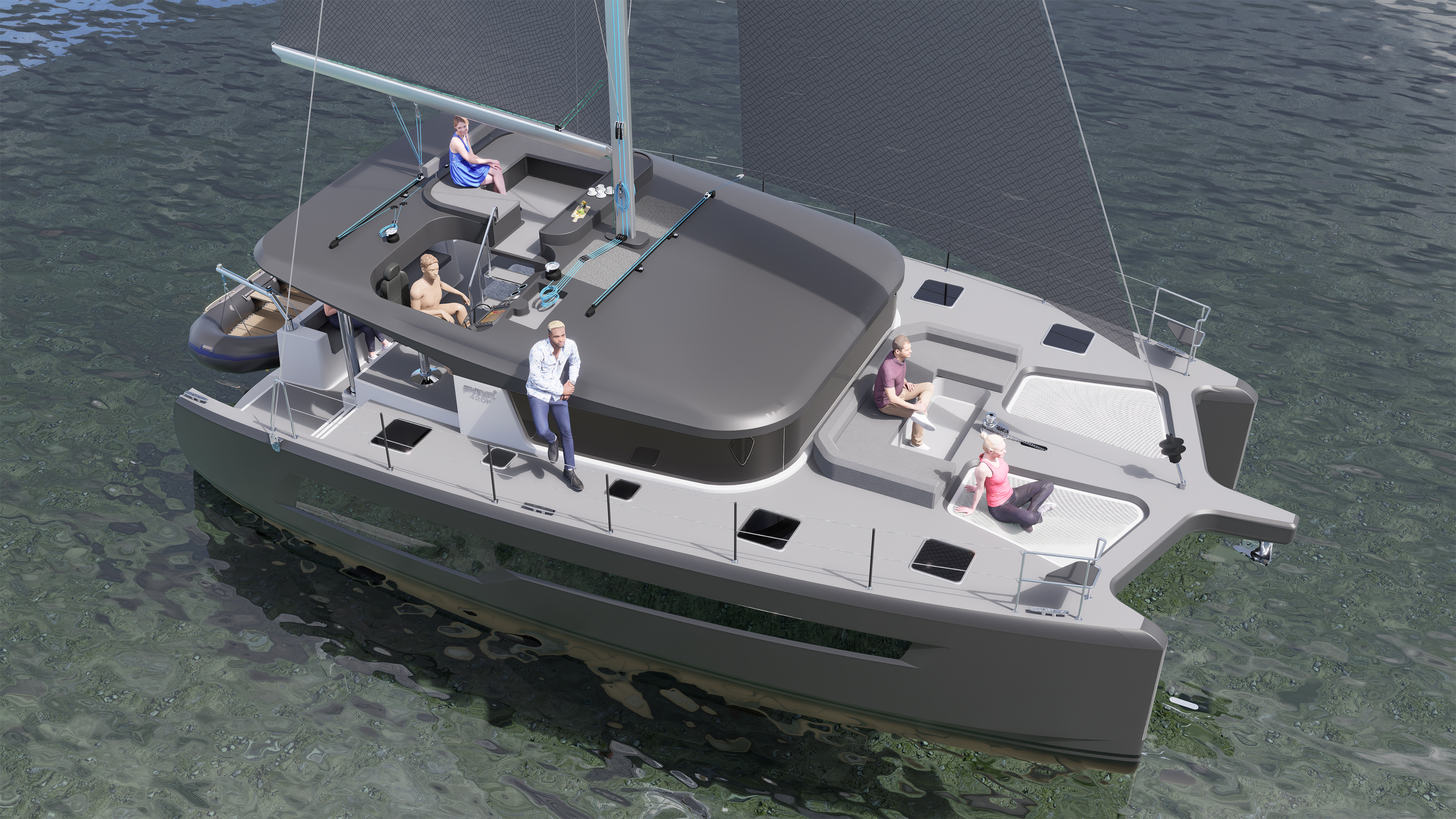

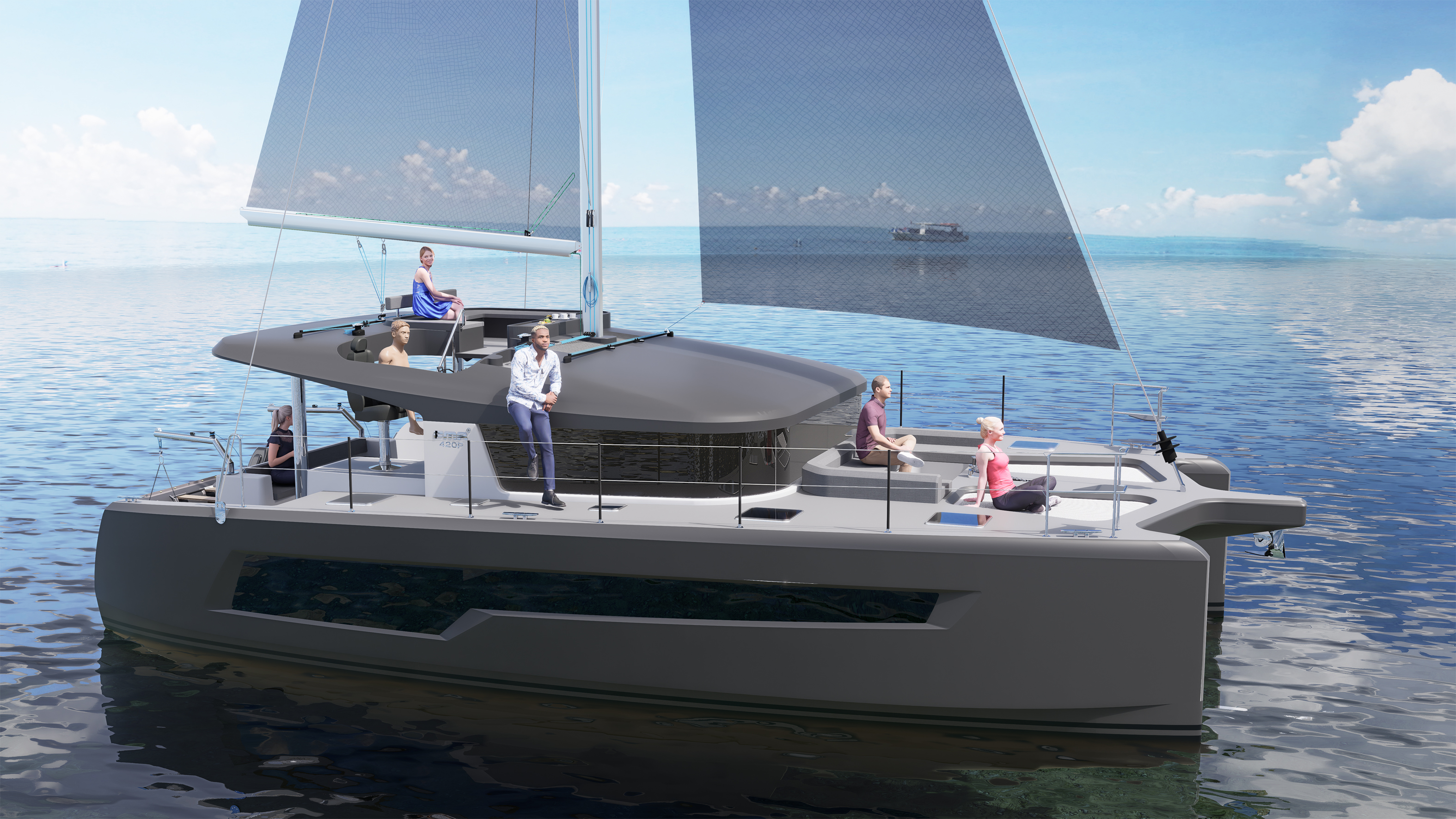

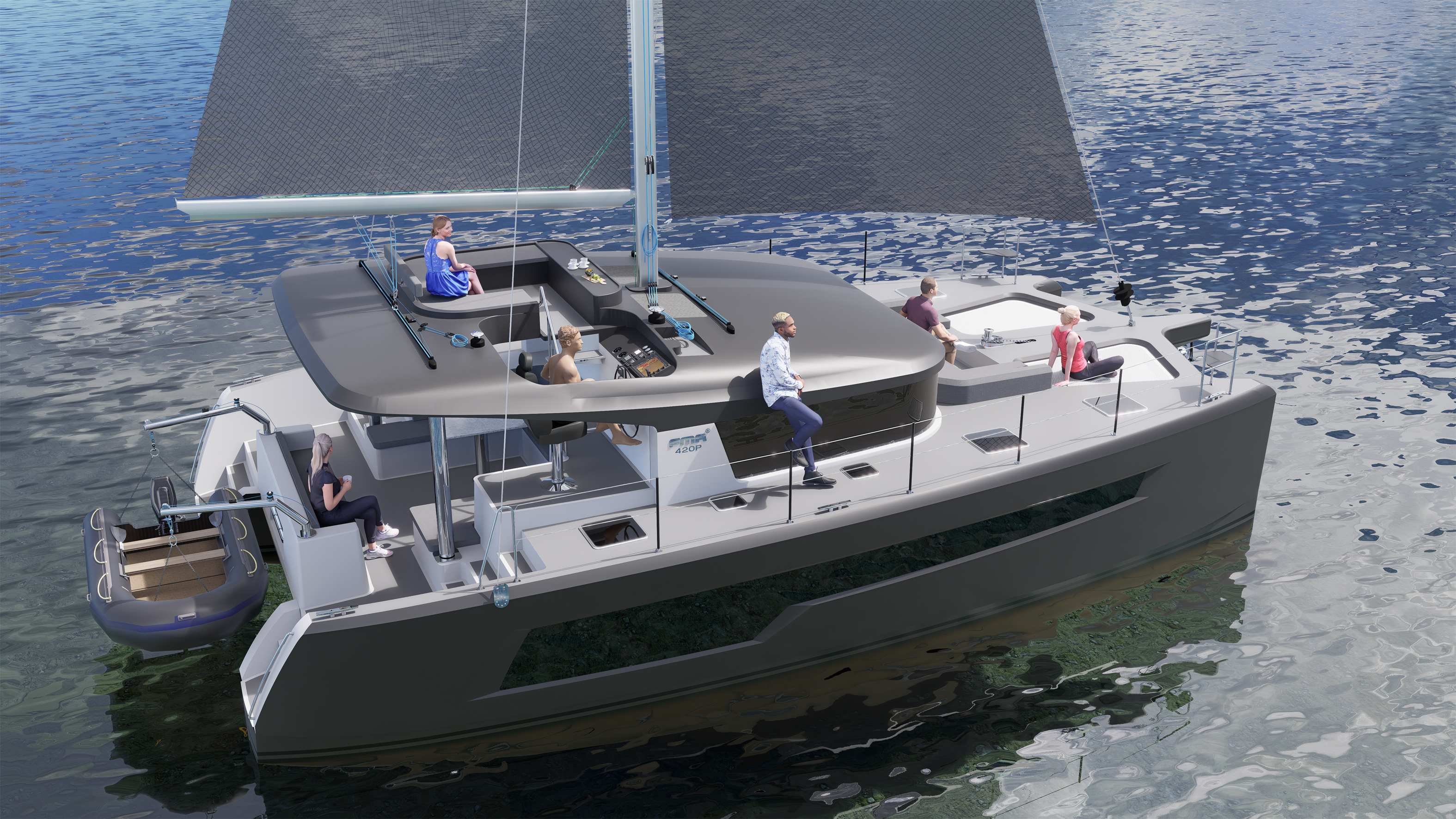

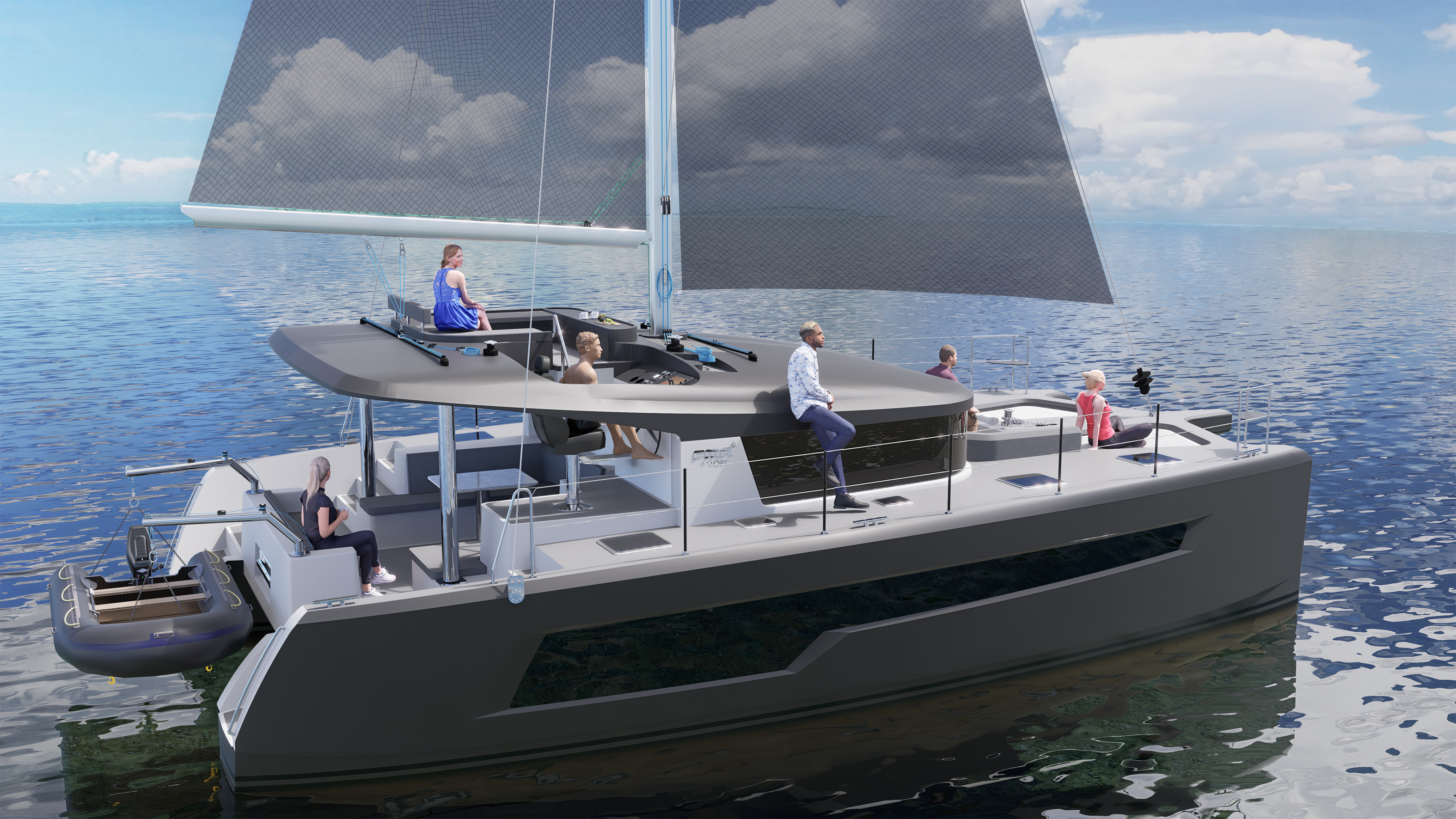

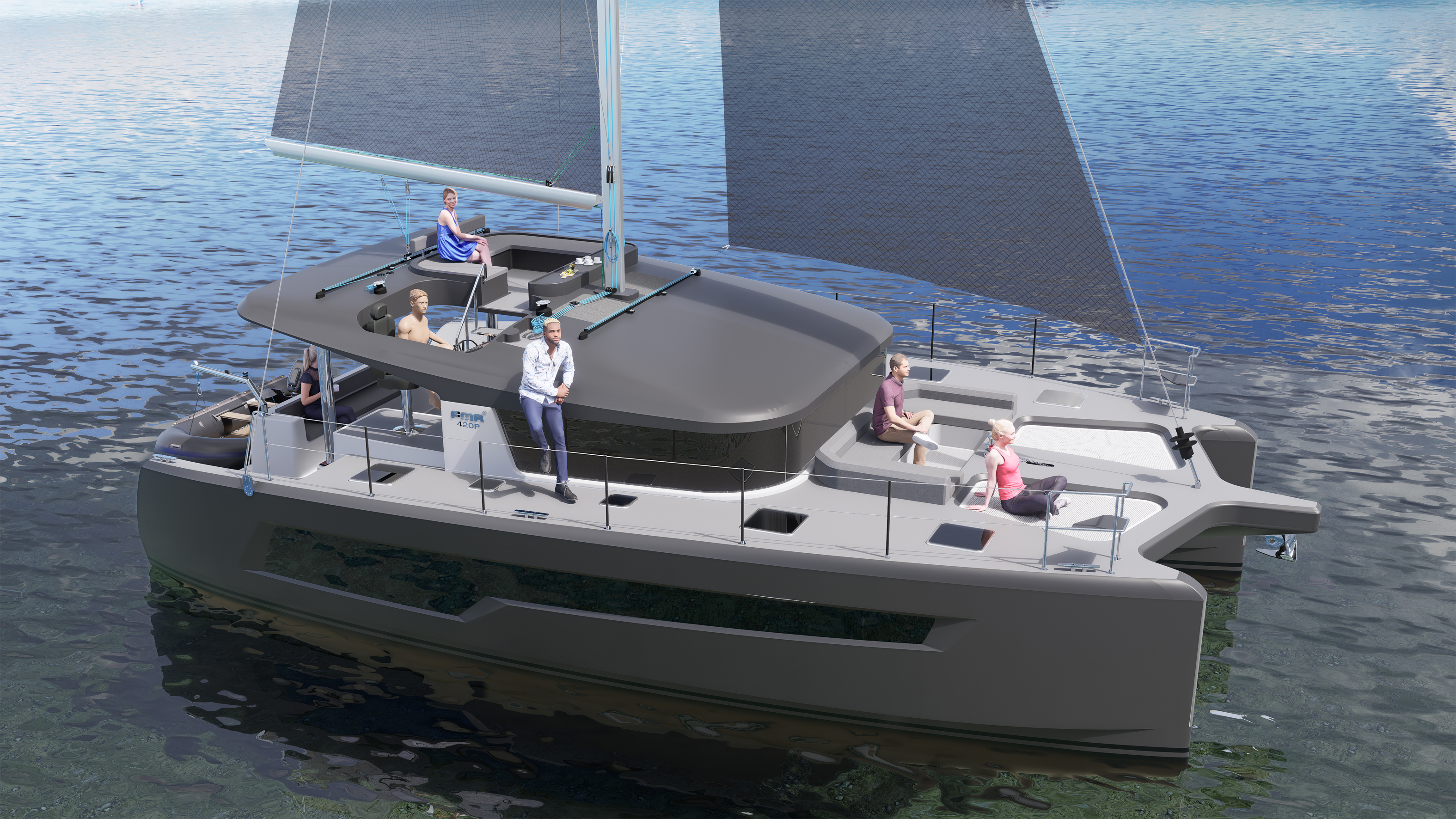

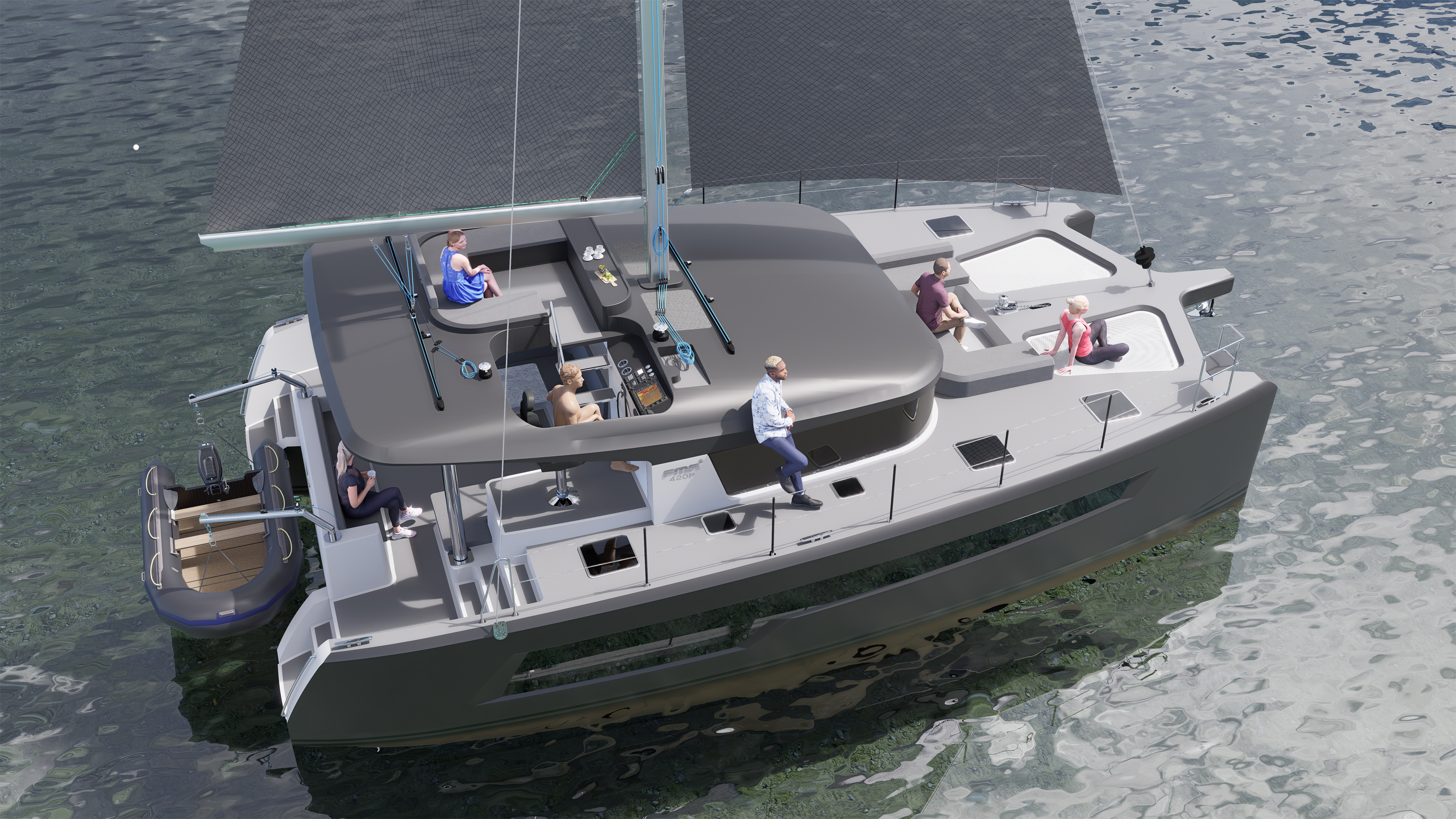

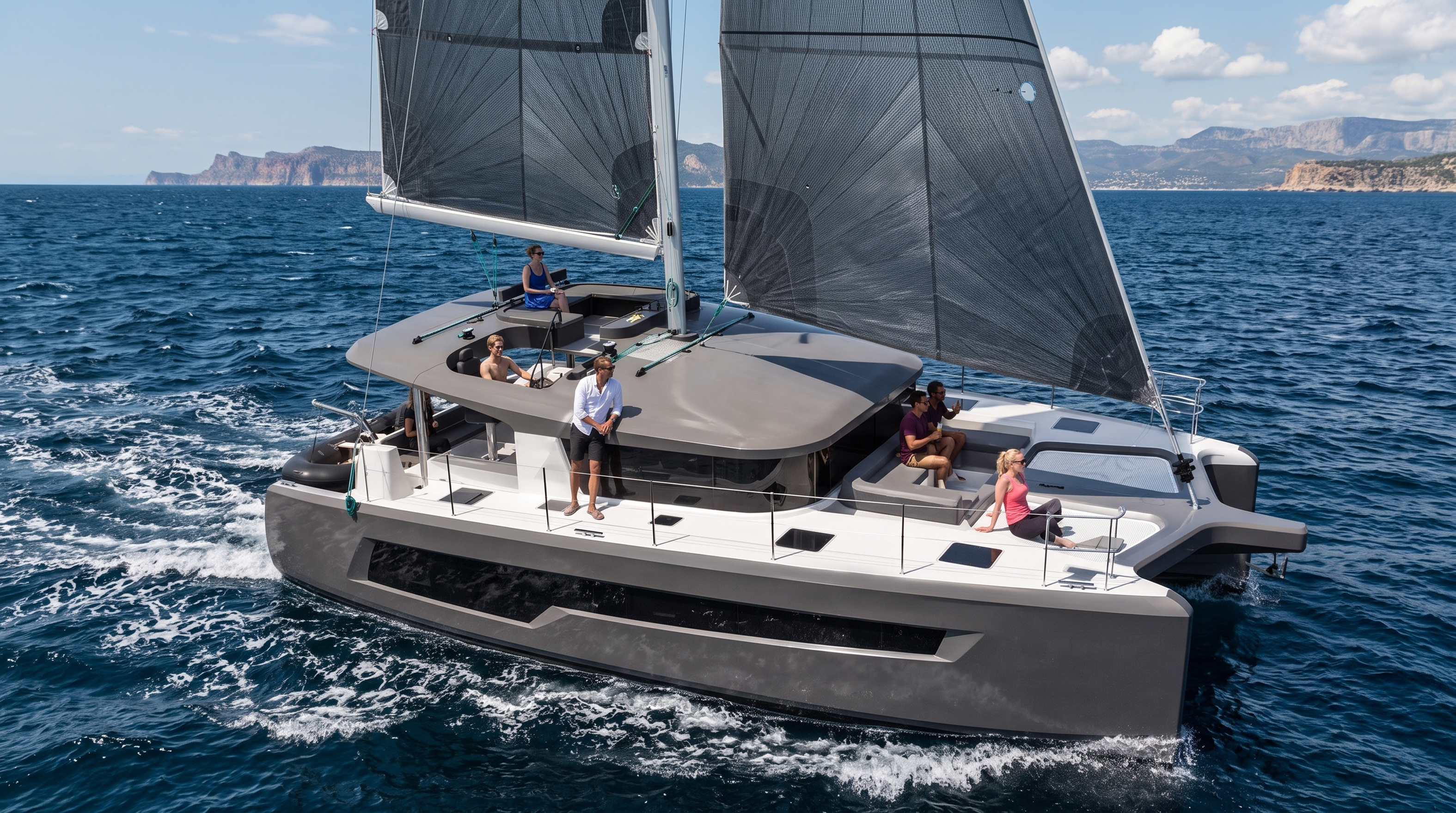

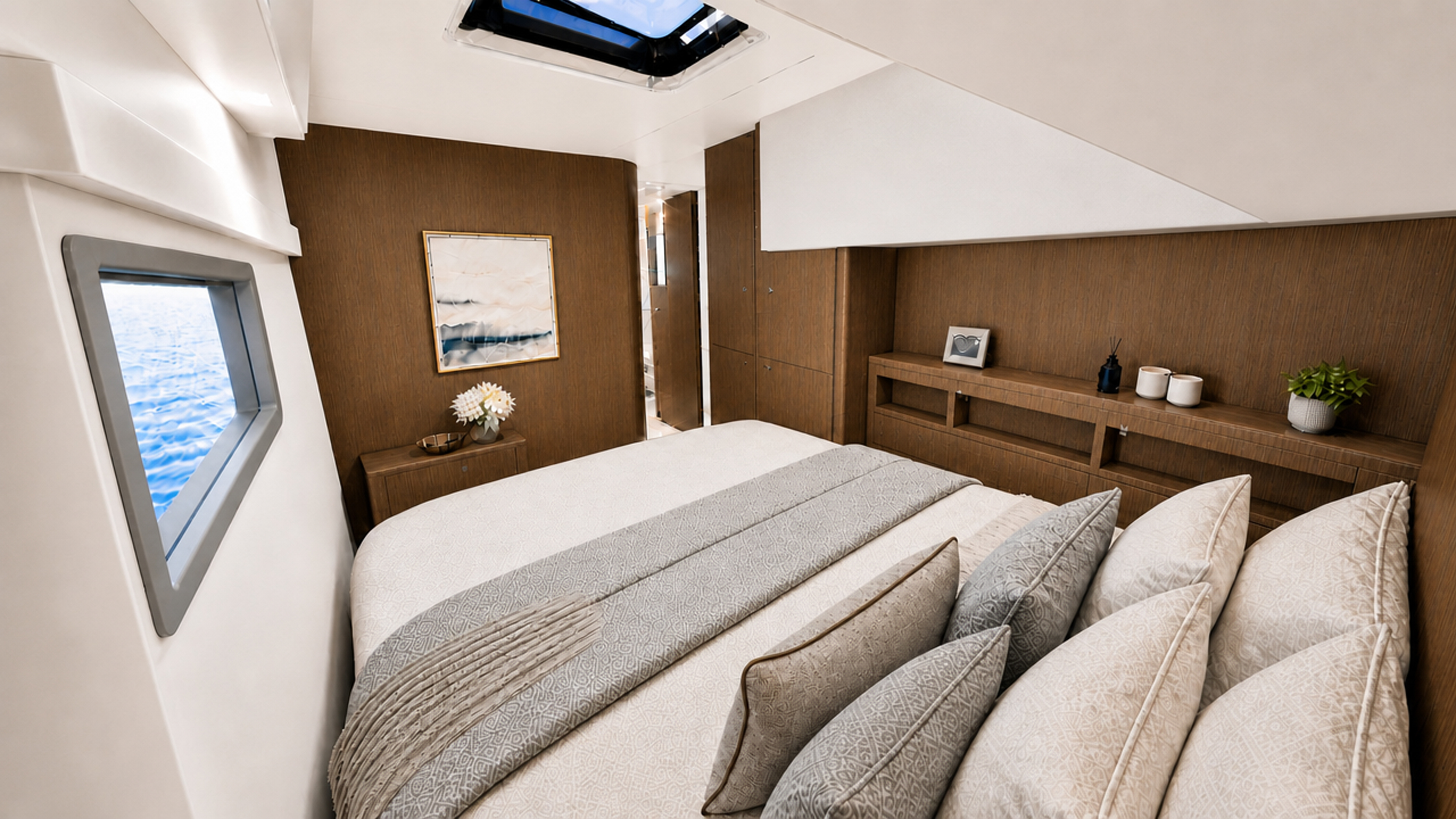

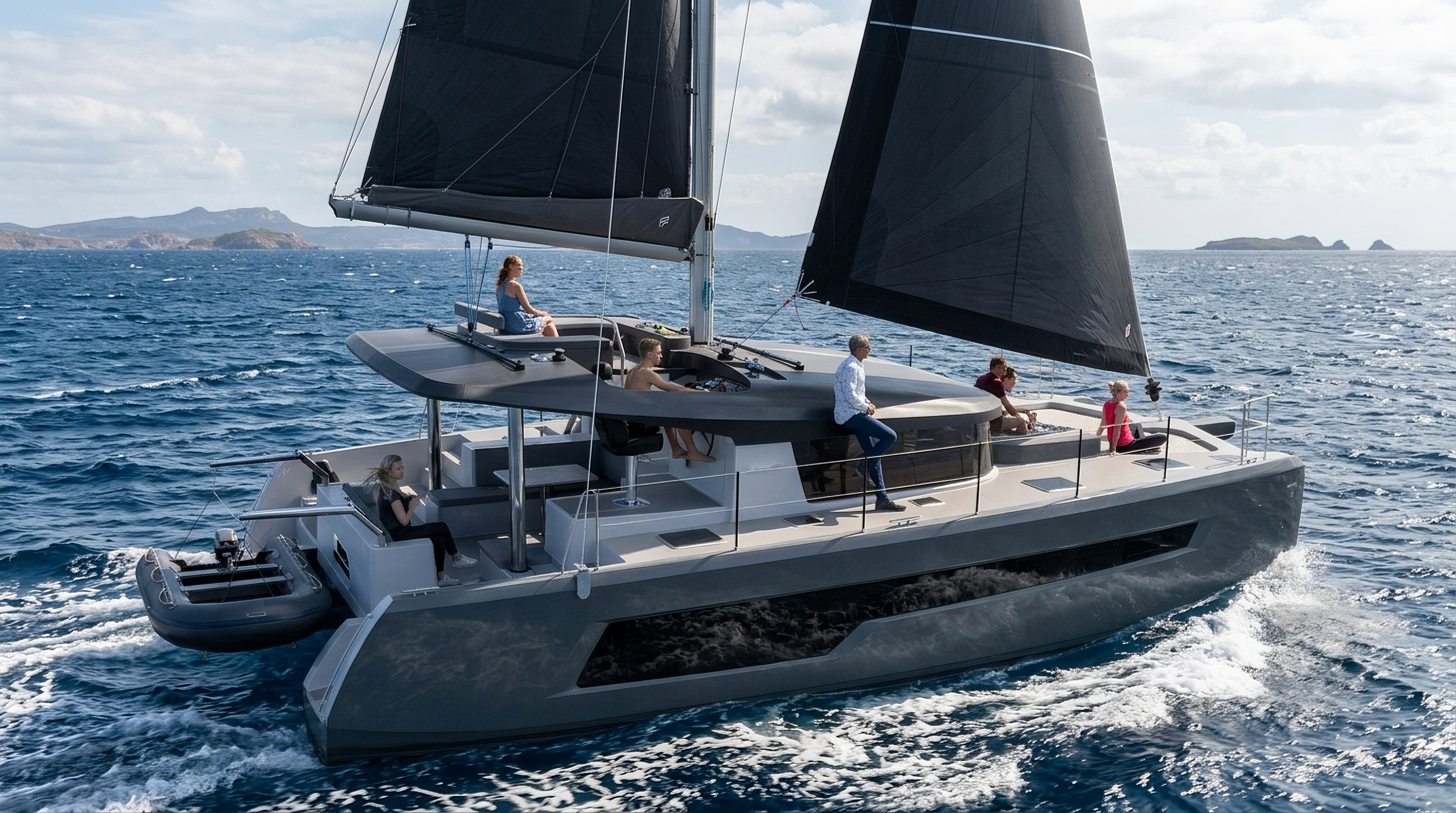

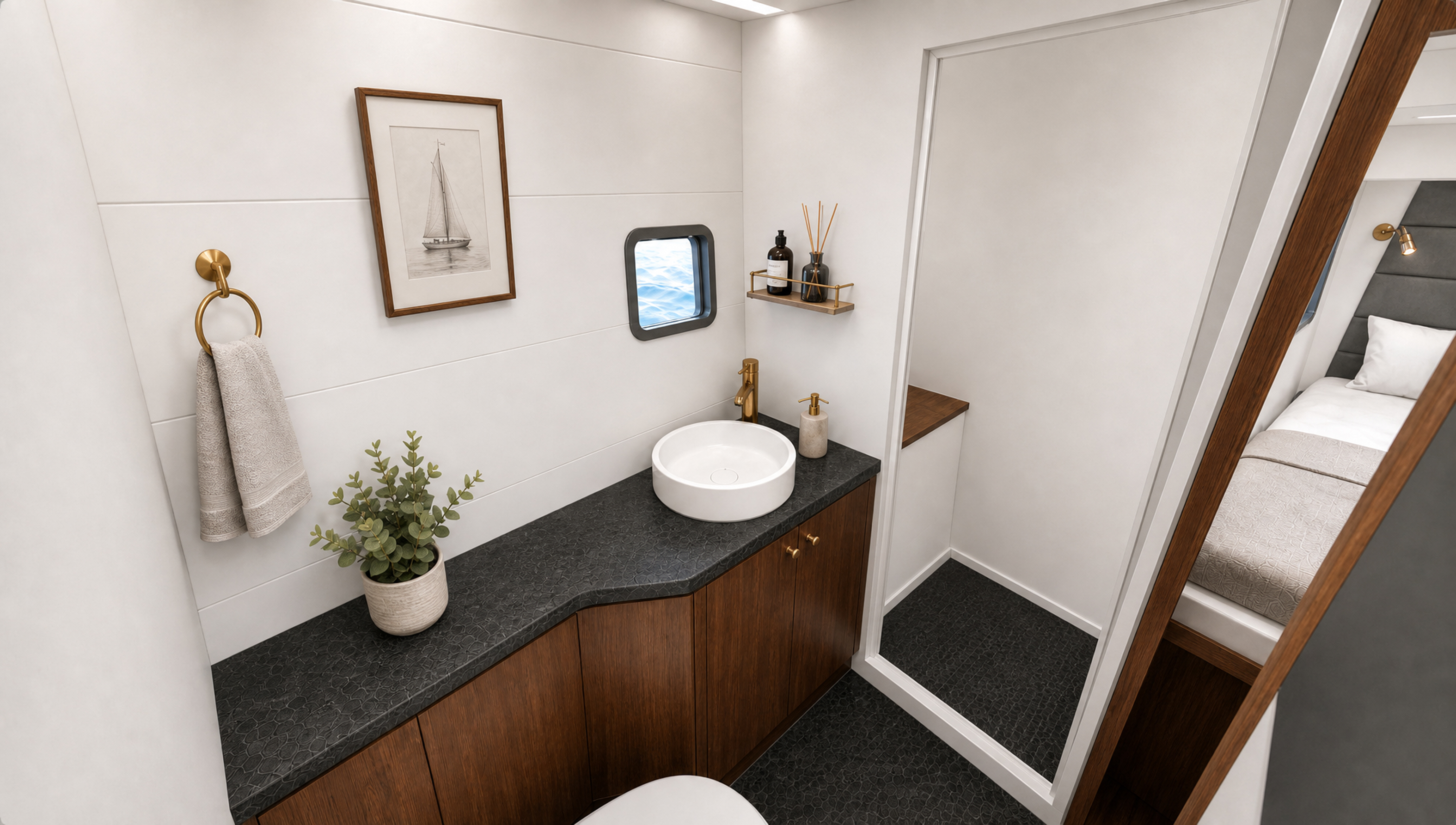

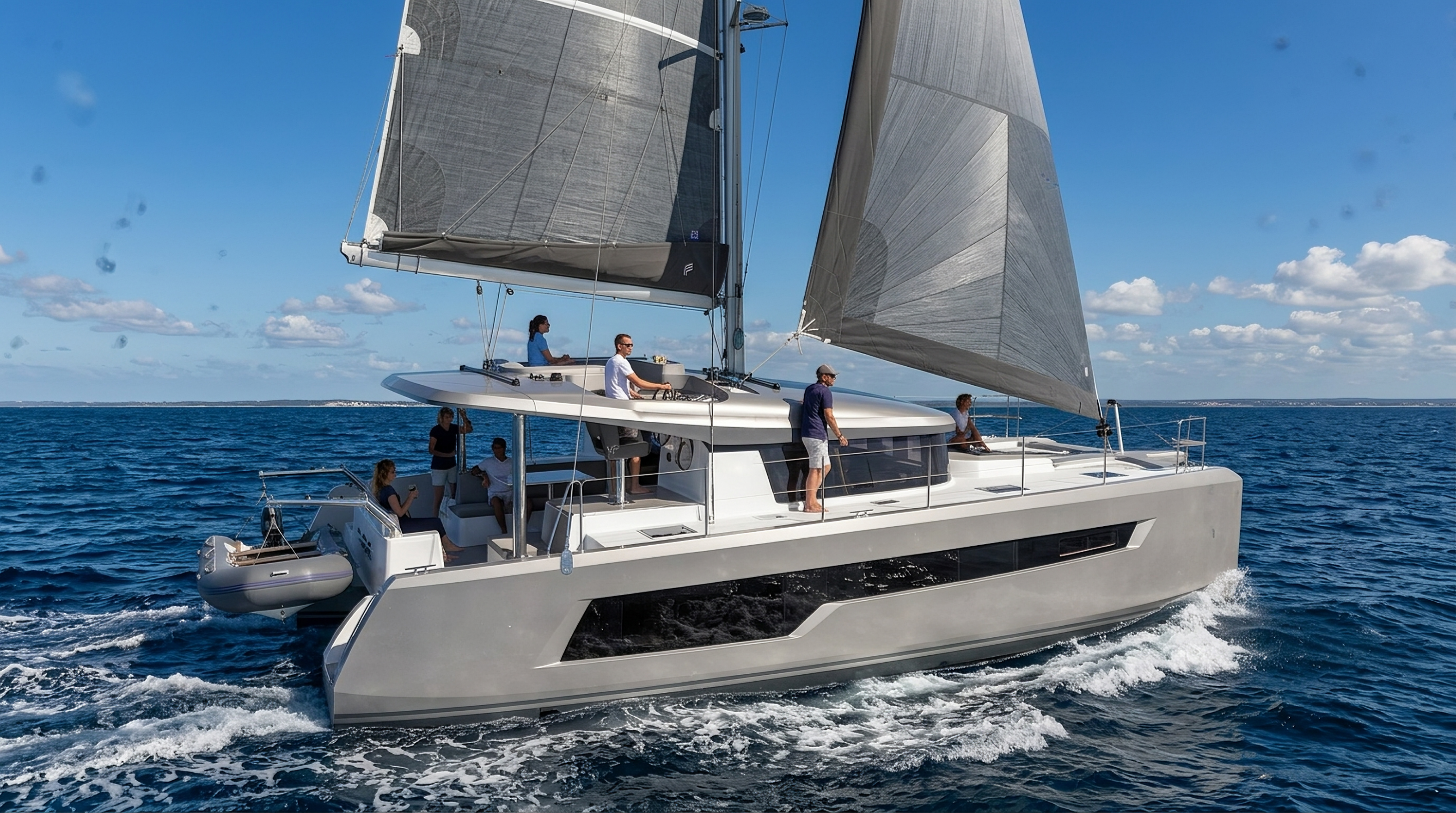

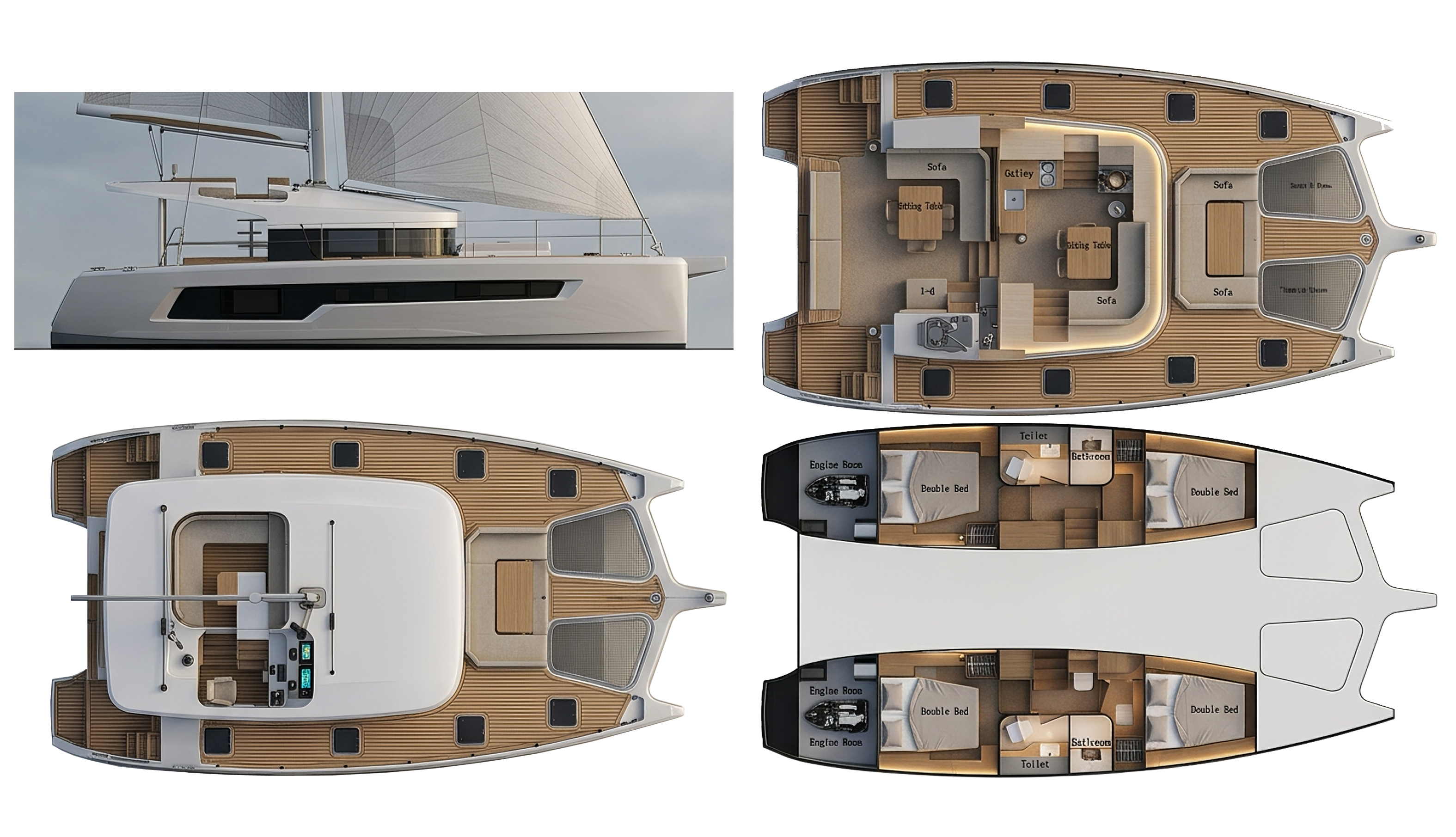

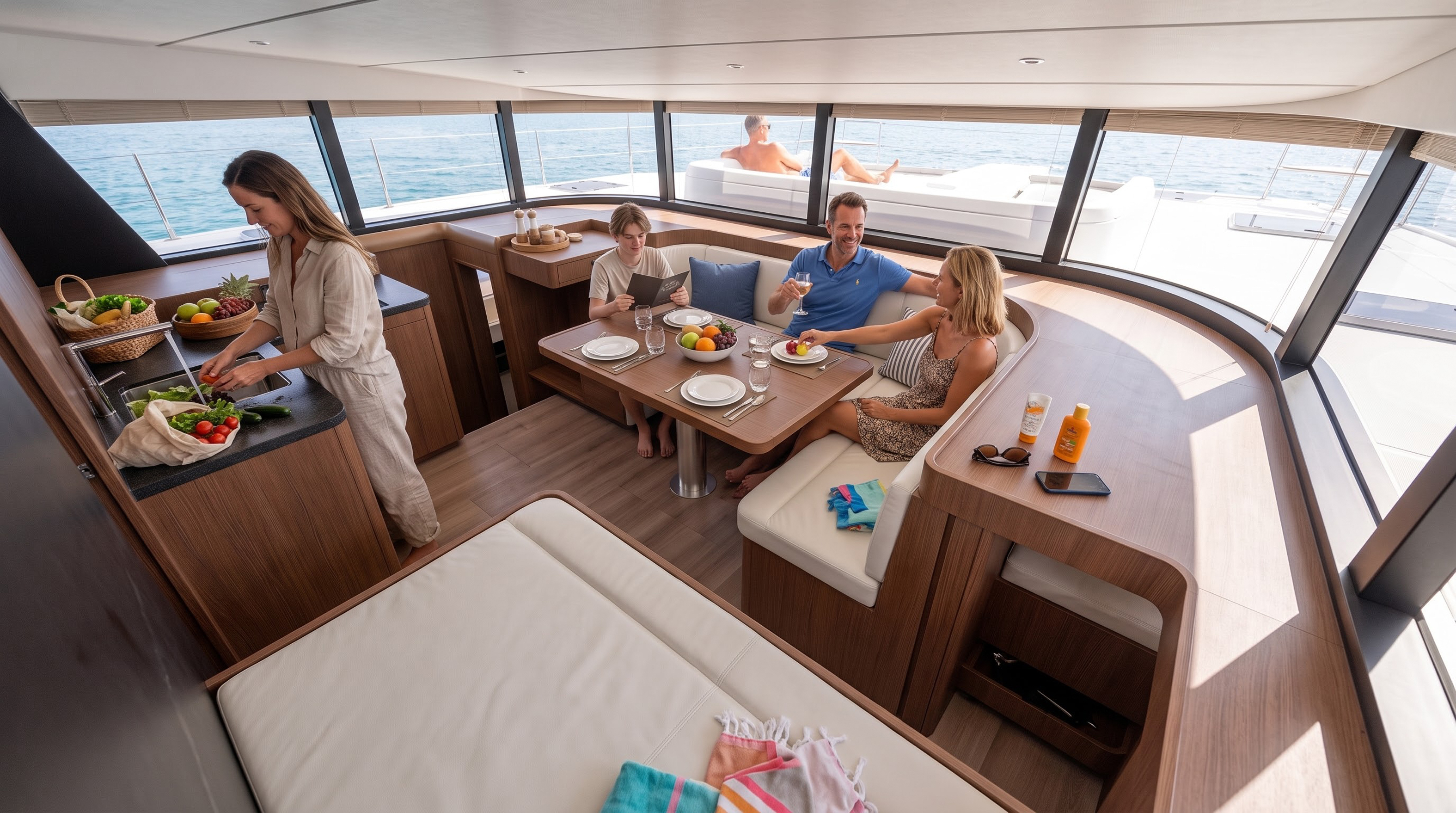

The FMA420S is a CCS Category III sailboat, 12.6 meters long and 6.8 meters wide. It features two 300-liter fuel tanks, two 350-liter water tanks, and two imported Yanmar 29-horsepower engines, capable of approximately 6 knots on engine power. The mast is 13.8 meters tall, with a mainsail area of 45 square meters and a foresail area of 32 square meters. It is equipped with radar, depth sounder, fish finder, nautical chart, GPS, VHF, AIS, radio position-indicating beacon, radar transponder, professional sailing instruments, a generator, and can be converted into four cabins with two berths for sailors. It also has two bathrooms, a sofa and dining area on the aft deck, a sofa on the flybridge, a sofa area and bow net on the bow, and a 12-person liferaft.

Overall length (including fenders)
12.80m, 41.3ft
Length
11.80m, 38.71ft
Waterline
11.80m, 38.71ft
Beam
6.76m, 22.17ft
Depth
2.50m, 8.20ft
Designed draft
1.40m, 4.60ft
Fuel tank
400L, 105gal
Fresh water tank
700L, 184gal
Full load displacement
18t, 39,683lb
Rated crew
12 (including 1 crew member)
Engine
2 x 29HP
Mast height
13.8m, 45ft
Main sail area
45m², 484sq ft
Foresail area
32m², 344sq ft
